Filter Rules
Notification Filter Rules

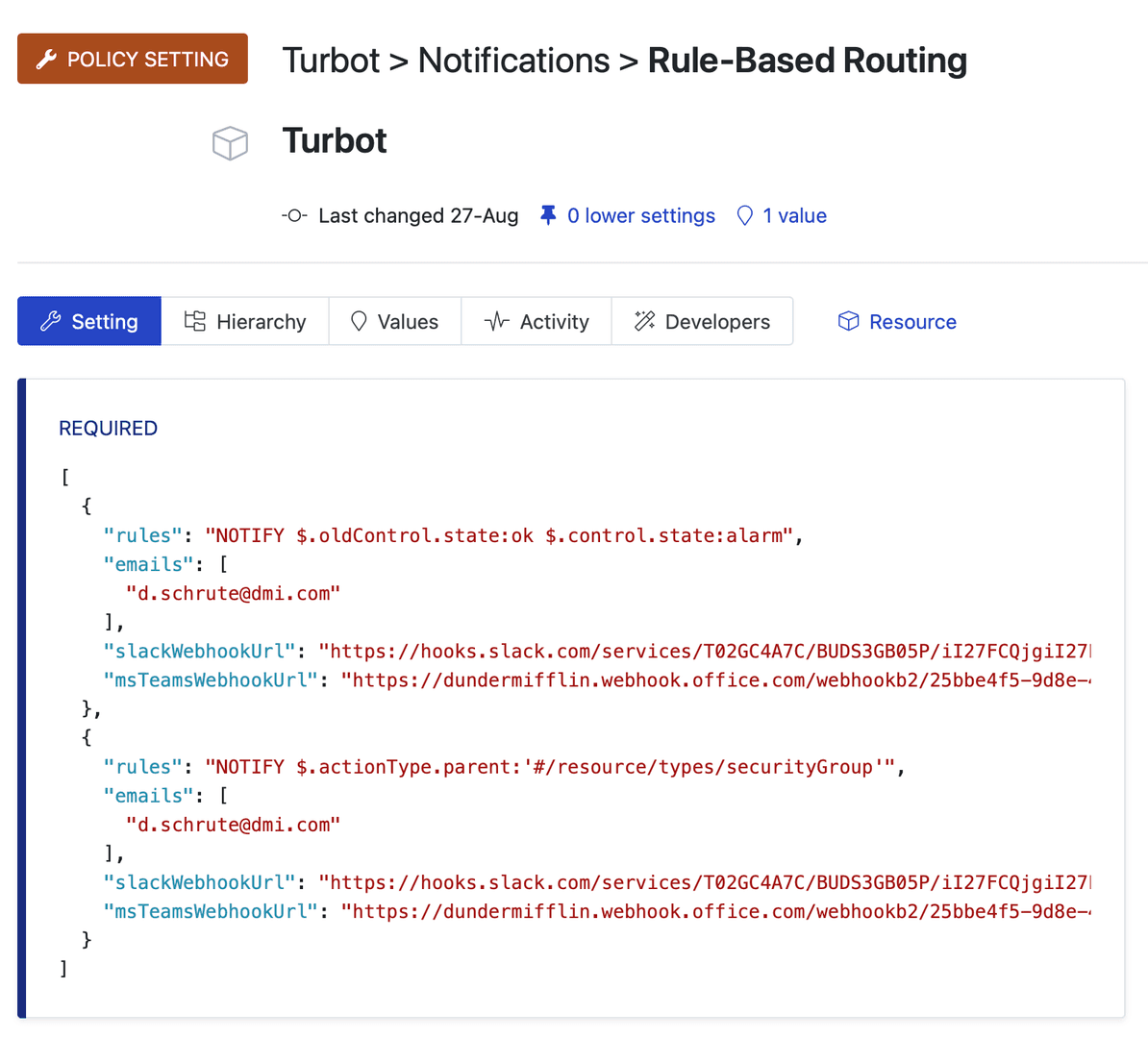

Filter rules are the heart of the Notification system. They control what types of notifications are sent and where they go. There is one global configuration for all notification filter rules located in the Turbot > Notifications > Rule-Based Routing policy setting:
The policy contains an array of rule-sets. Each rule-set consists of 1 or more rules and 1 or more delivery targets. Current valid delivery targets include:
- Slack webhook
- Microsoft Teams webhook
- Custom Webhook
- Email Addresses
- Profiles
The rules in each rule-set are defined by a multi-line string. Each line of the string is a separate statement.
Each statement contains an action (either
NOTIFYorIGNORE) and one or more match conditions.Rules are processed in order. Processing stops at the first match, which determines whether the notification is sent or ignored.
If no rule matches than the default rule
IGNORE *matches and the notification is not sent.Each rule contains one or more conditions, using the Turbot Guardrails filter syntax
Arrays
- To compare items that contain arrays, use a splat. You may specify how to
match the items:
.*.- All items in the array must match for the rule to match. An empty list also matches..+.- All items in the array must match for the rule to match. An empty list does NOT match
- Use
[]to specify an empty list:
- To compare items that contain arrays, use a splat. You may specify how to
match the items:
Using narrow filter policies reduce noise and ensure that only relevant notifications are sent to the appropriate recipients. This can help to improve the overall efficiency of the notification system and reduce the amount of time users spend processing notifications that are not relevant to their responsibilities.
Examples
Send notification for every control moving from OK state to Alarm state:
- rules: NOTIFY $.oldControl.state:alarm $.control.state:ok
emails:
- [email protected]
- [email protected]
slackWebhookUrl: https://hooks.slack.com/services/XXXXXXX/YYYYYYYYYY/ZZZZZZZZZZZZZZ
Send notification to MS Teams when Turbot modifies a security group or security group rule:
- rules: |
NOTIFY $.actionType.parent:'#/resource/types/securityGroup'
NOTIFY $.actionType.uri:'tmod:@turbot/aws-vpc-security#/control/types/securityGroupApproved'
msTeamsWebhookUrl": "https://dmi.webhook.office.com/webhookb2/xxx/IncomingWebhook/yyy/zzz"
Ignore any alarms associated with the resource named asst-regional-manager-bucket, send email notification for all other alarms in the aws account 111222333444:
- rules: |
"IGNORE $.resource.Name:asst-regional-manager-bucket"
"NOTIFY $.control.state:alarm $.resource.turbot.custom.aws.accountId:'111222333444'"
emails:
- [email protected]
Monitor a single resource arn, sending all notifications to slack and teams:
- rules: |
"NOTIFY $.resource.turbot.akas[0]:'arn:aws:ec2:us-east-2:899206412154:instance/i-08b562451d0215732'"
slackWebhookUrl: https://hooks.slack.com/services/XXXXXXX/YYYYYYYYYY/ZZZZZZZZZZZZZZ
msTeamsWebhookUrl": "https://dmi.webhook.office.com/webhookb2/xxx/IncomingWebhook/yyy/zzz"
Exposed Metadata for a Control Update
{
"resource": {
"Acl": {
"Owner": {
"ID": "b67a63ec336c2053f5cbe4dfbc84165c7dc2f8a67ef1d820a4eee5d8ef89d8a8"
},
"Grants": [
{
"Grantee": {
"ID": "b67a63ec336c2053f5cbe4dfbc84165c7dc2f8a67ef1d820a4eee5d8ef89d8a8",
"Type": "CanonicalUser"
},
"Permission": "FULL_CONTROL"
}
]
},
"Cors": {},
"Name": "asst-regional-manager-bucket",
"Tags": [
{
"Key": "foo",
"Value": "bar"
},
{
"Key": "rock",
"Value": "star"
}
],
"Payer": "BucketOwner",
"Policy": {},
"Logging": {},
"Website": {},
"Lifecycle": {},
"Encryption": {
"ServerSideEncryptionConfiguration": {
"Rules": [
{
"BucketKeyEnabled": false,
"ApplyServerSideEncryptionByDefault": {
"SSEAlgorithm": "AES256"
}
}
]
}
},
"Versioning": {
"Status": "Suspended",
"MFADelete": "Disabled"
},
"Replication": {},
"CreationDate": "2021-02-02T17:30:13.000Z",
"PolicyStatus": {},
"PublicAccessBlock": {
"BlockPublicAcls": true,
"IgnorePublicAcls": true,
"BlockPublicPolicy": true,
"RestrictPublicBuckets": true
},
"LocationConstraint": "us-east-1",
"AccelerateConfiguration": {
"Status": "Suspended"
},
"ObjectLockConfiguration": {},
"NotificationConfiguration": {},
"turbot": {
"id": "261303520089583",
"versionId": "290894341530947",
"processId": "290894338017602",
"actorIdentityId": "200228969448365",
"actorPersonaId": "261303481620902",
"actorRoleId": null,
"createTimestamp": "2022-07-07T16:06:58.829Z",
"updateTimestamp": "2023-06-07T03:08:25.401Z",
"deleteTimestamp": null,
"timestamp": "2022-07-07T16:06:58.829Z",
"title": "asst-regional-manager-bucket",
"tags": {
"foo": "bar",
"rock": "star"
},
"custom": {
"aws": {
"accountId": "111222333444",
"partition": "aws",
"regionName": "us-east-1"
},
"createTimestamp": "2021-02-02T17:30:13.000Z"
},
"parentId": "261303469054733",
"path": "200228952330241.206144700865790.261303442103935.261303469054733.261303520089583",
"resourceTypeId": "209189633173890",
"resourceGroupIds": [],
"akas": [
"arn:aws:s3:::asst-regional-manager-bucket"
],
"terraform": {},
"state": "provisioned",
"alternatePersona": "dmi_import_role/b61cb8bd-9f23-4311-a1e9-3943043e0dfa",
"searchData": {},
"resourceTypePath": "204308048523501.209189633101177.209189633173890",
"resourceCategoryId": "200228961477257",
"resourceCategoryPath": "200228961460861.200228961477257"
}
},
"control": {
"state": "alarm",
"reason": "Not approved: Usage",
"turbot": {
"id": "261303520603122",
"versionId": "290895339883245",
"processId": "290895338766060",
"actorIdentityId": "200228969448365",
"actorPersonaId": null,
"actorRoleId": null,
"createTimestamp": "2022-07-07T16:06:58.829Z",
"updateTimestamp": "2023-06-07T03:24:40.354Z",
"deleteTimestamp": null,
"timestamp": "2022-07-07T16:06:58.829Z",
"title": null,
"tags": {},
"custom": {},
"resourceId": "261303520089583",
"controlTypeId": "209189634955290",
"nextTickTimestamp": "2023-06-08T02:09:47.329Z",
"tickCount": 0,
"stateChangeTimestamp": "2023-06-07T03:24:40.347Z",
"state": "alarm",
"alternatePersona": null,
"resourcePath": "200228952330241.206144700865790.261303442103935.261303469054733.261303520089583",
"controlTypePath": "204308048523501.209189633101177.209189633173890.209189634955290",
"resourceTypeId": "209189633173890",
"resourceTypePath": "204308048523501.209189633101177.209189633173890",
"controlCategoryId": "200228961165719",
"controlCategoryPath": "200228961092955.200228961165719",
"resourceCategoryId": "200228961477257",
"resourceCategoryPath": "200228961460861.200228961477257"
}
},
"oldControl": {
"state": "ok",
"reason": "Approved",
"turbot": {
"id": "261303520603122",
"versionId": "290841486264313",
"processId": "290841485770743",
"actorIdentityId": "200228969448365",
"actorPersonaId": null,
"actorRoleId": null,
"createTimestamp": "2022-07-07T16:06:58.829Z",
"updateTimestamp": "2023-06-06T12:48:08.929Z",
"deleteTimestamp": null,
"timestamp": "2022-07-07T16:06:58.829Z",
"title": null,
"tags": {},
"custom": {},
"resourceId": "261303520089583",
"controlTypeId": "209189634955290",
"nextTickTimestamp": null,
"tickCount": 0,
"stateChangeTimestamp": "2023-06-06T12:48:08.928Z",
"state": "ok",
"resourcePath": "200228952330241.206144700865790.261303442103935.261303469054733.261303520089583",
"controlTypePath": "204308048523501.209189633101177.209189633173890.209189634955290",
"resourceTypeId": "209189633173890",
"resourceTypePath": "204308048523501.209189633101177.209189633173890",
"controlCategoryId": "200228961165719",
"controlCategoryPath": "200228961092955.200228961165719",
"resourceCategoryId": "200228961477257",
"resourceCategoryPath": "200228961460861.200228961477257"
}
},
"controlType": {
"uri": "tmod:@turbot/aws-s3#/control/types/bucketApproved",
"icon": "fal-check-double",
"title": "Approved",
"modUri": "tmod:@turbot/aws-s3",
"parent": "#/resource/types/bucket",
"parentUri": "tmod:@turbot/aws-s3#/resource/types/bucket",
"categoryUri": "tmod:@turbot/turbot#/control/categories/resourceApproved"
}
}
Exposed Metadata for an Action Update
{
"actionType": {
"uri": "tmod:@turbot/aws-s3#/action/types/bucketSetVersioning",
"icon": "fal-copy",
"title": "Set Versioning",
"modUri": "tmod:@turbot/aws-s3",
"parent": "#/resource/types/bucket",
"parentUri": "tmod:@turbot/aws-s3#/resource/types/bucket",
"categoryUri": "tmod:@turbot/turbot#/control/categories/other"
}
}
