Firehose

Guardrails Firehose for AWS SNS

The Guardrails Firehose generates an event stream of notification sent to an AWS SNS topic. It is ideal for extracting event streams from Guardrails then sending them to various consumers such as email, a Security Information and Event Management (SIEM) tool, a logging tool, etc. The Firehose answers the question "Can I get a stream of change events flowing through Guardrails?". It can't answer "How many controls are in ok?" or "How many storage buckets are in the environment?" Customers who need snapshots of the environment or bulk data extracts of resources, control states or other data should use GraphQL or Steampipe.

Event correlation would be handled by products that consume the Firehose event stream. Also, the Firehose is responsible for delivery of notifications to the Firehose SNS topic. Any integrations that subscribe to the Firehose topic are completely up to the customer. Only notifications created after Firehose configuration will be reprocessed. There is no way to force resending of notifications in a given time range.

How It Works

The Guardrails Firehose composes a number of stages for taking a notification event in Guardrails through to final delivery on an AWS SNS topic.

Notification generated by change on a resource, control, policy, etc -> Watch Filter selects notifications to send -> Render the Notification Template -> Publish to AWS SNS topic -> Downstream integrations
  1. As resources, controls and policy settings change inside Guardrails, entries are added to the Notifications table.
  2. Watch filters select some subset of those notifications to be send to the Firehose.
  3. Notifications are passed through a Notification Template to prepare them for delivery to the Firehose.
  4. A background process takes rendered notifications then publishes them to the Firehose Topic.

Setup Guardrails Workspace and AWS Resources

The following steps cover how to manually install and configure the mod. If Terraform is preferred, use this mod example for steps 2 - 5 and creating the Guardrails Firehose.

  1. Install the mod into the workspace if not already installed. See Installing Mods for more guidance.
  2. Create the AWS SNS topic. It can be in any account and any region. All the notifications will be forwarded to this topic.
  3. Create an AWS IAM User with access to the above SNS topic. Guardrails will use this user to publish to the SNS topic. Guardrails recommends having a specific user that is only used for notification forwarding. The IAM policy on the Firehose user should also be least-privilege with only Publish permissions to the Firehose SNS topic alone.
  4. Generate an access key pair for the above IAM User.
  5. Set the following Guardrails policies. Note that these can ONLY be set at the Turbot level:
  1. This completes the AWS configuration and Guardrails Workspace configuration. Watches must still be created for notifications to flow through the Firehose.

Setup Firehose Watches

A Guardrails Firehose watch specifies a set of parameters used to filter for which notifications to send. A watch consists of the following:

Parameter Description Common Value
action [REQUIRED] The action the Watch takes when it finds a match, either a Guardrails ID or URI. tmod:@turbot/firehose-aws-sns#/action/types/router
favorite [OPTIONAL] Favorite to associate the Watch with, as a Guardrails ID. Varies by user
filter [REQUIRED] A valid filter to determine which notifications to process. Varies by use case
resource [REQUIRED] The resource to create the Watch for, either a Guardrails ID or AKA. Turbot resource ("tmod:@turbot/turbot#/"), Guardrails Folder, or Cloud resource

The Terraform docs show how to set this information using Terraform. Generally, the filter parameter is the most complex and has extensive coverage below.

Watch Filters

Watches specify the filter criteria for matching notifications. A matched notification will be sent through the Firehose pipeline. More information on notification filters can be found in the Notification Filters docs.

Supported Filter Pivots

Keyword Value Example
controlCategoryId Guardrails ID or AKA of the Control Category. controlCategoryId:'tmod:@turbot/turbot#/control/categories/cmdbDiscovery'
controlCategoryLevel level and / or descendant controlCategoryLevel:self,descendant
controlTypeId Guardrails ID or AKA of the Control Type. controlTypeId:'tmod:@turbot/aws-s3#/control/types/bucketVersioning'
controlTypeLevel level and / or descendant controlTypeLevel:self,descendant
level level and / or descendant level:self
policyTypeId Guardrails ID or AKA of the Policy Type policyTypeId:'tmod:@turbot/aws-s3#/policy/types/bucketVersioning'
policyTypeLevel Guardrails ID or AKA of the Policy Type policyTypeLevel:self,descendant
resourceCategoryId Guardrails ID or AKA of the Resource Category resourceCategoryId:'tmod:@turbot/turbot#/resource/categories/storage'
resourceCategoryLevel level and / or descendant resourceCategoryLevel:self,descendant
resourceTypeId Guardrails ID or AKA of the Resource Type resourceTypeId:'tmod:@turbot/aws-s3#/resource/types/bucket'
resourceTypeLevel level and / or descendant resourceTypeLevel:self
notificationType See Supported Notification Types notificationType:active_grants_deleted

Supported Notification Types

Item Action Notification Type Description
Action Notify action_notify When a Guardrails action invokes a notify command during a run.
Control Change control Aggregates both control_updated and control_notify notification types
Control Notify control_notify When a Guardrails control invokes a notify command during a run.
Control Updated control_updated When a Guardrails control is updated. Mainly, this is done to change the state of a control.
Favorite Created favorite_created When a favorite is created for a resource.
Favorite Deleted favorite_deleted When a favorite is deleted for a resource.
Grant Activation Created active_grants_created When a Guardrails grant is activated.
Grant Activation Deleted active_grants_deleted When a Guardrails grant is deleted.
Grant Created grant_created When a Guardrails grant is created. By default in the UI "Activate for immediate use" is checked. In that case, a grant_created notification is generated followed by active_grants_created.
Grant Deleted grant_deleted When a Guardrails grant is deleted.
Policy Setting Created policy_setting_created When a new Guardrails policy setting is created.
Policy Setting Deleted policy_setting_deleted When an existing Guardrails policy setting is deleted.
Policy Setting Updated policy_setting_updated When an existing Guardrails policy setting is updated.
Policy Value Updated policy_value_updated When a Guardrails policy value is updated.
Resource Change resource Aggregates all resource_* notifications.
Resource Created resource_created When a new resource is created in Guardrails.
Resource Deleted resource_deleted When a resource in Guardrails is deleted.
Resource Updated resource_updated When a resource in Guardrails is updated.

Warnings and Notes on Watches

WARNING

NOTE

Creating Filters for Watches Easily

Manually constructing Watch filter strings can be tedious and error-prone. Instead, Watch filters can be interactively prototyped using the "Activity Ledger" report in the Guardrails Console. Guardrails will also auto-generate the filter string.

  1. Go to the Reports tab in the Guardrails Console.
  2. Find the "Activity Ledger" report. Both the Firehose and Activity Ledger report examine the notifications table, so whatever rows show up in the Activity Ledger will show up in the Firehose too.
  3. Customize the report to provide exactly the desired information. Activity Ledger Custom Report
  4. Go to the little Developers tab on the reports page. Click on one of the queries in the GraphQL section. This will take you to the main GraphiQL console. Little Developers Tab

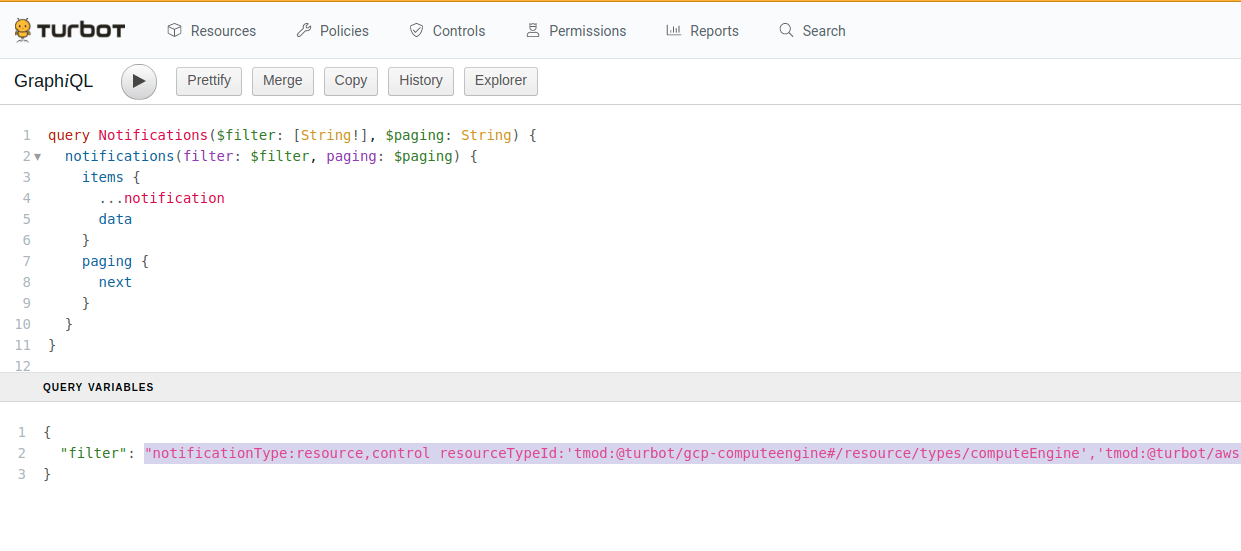

  5. In the bottom left, there’s a Query Variables section.
  6. The “filter” in the variable section is the machine generated filter that matches your report. Get the filter from the variables section
  7. Copy the filter string into your watch.
  8. Create the watch using the GraphQL queries in the next section.

This same process is used when building filter strings for Steampipe queries for the turbot_notification table.

When building a watch filter string using the Activity Report, Guardrails may include the umbrella notification types resource and control. The resource notification type aggregates resource_created, resource_updated and resource_deleted. The control notification type aggregates the control_notify and control_updated notification types. The umbrella notification types are a good starting place but can be replaced if more specificity is required.

There is an important difference between control_notify and control_updated. Control Notify will tell you when a control has taken an action, typically to remediate. Control Updated notifications record when a control has changed state. Customers are typically more interested in the control_updated notifications.

Common Filters

While the Firehose has a wide selection of notification types, the most commonly used are control_updated, resource_created, resource_updated and resource_deleted. The below examples should serve as a starting point. Filters for specific cloud accounts or services can be built using the creating filters instructions above.

Controls

Resources

Creating Watches

Firehose watches can be created and managed using GraphQL or Terraform.

Create Watch by Terraform

Watches can be created by Terraform. The Terraform docs have more information.

resource "turbot_watch" "active_grants_deleted" {
  resource = "185423120545381"
  action   = "tmod:@turbot/firehose-aws-sns#/action/types/router"
  filters  = [
    "level:self,descendant notificationType:active_grants_deleted"
  ]
}

Updating and deleting Watches using Terraform is done in the usual way. If a watch does not update with Terraform then destroy the watch and recreate it with the new filter string.

Create Watch by GraphQL

Create a watch using GraphQL:

mutation CreateWatch($input: CreateWatchInput!) {
  createWatch(input: $input) {
    filters
    handler
    turbot {
      id
      resourceId
    }
  }
}

GraphQL Input: Note that the resource field should be one of these: The Guardrails resource, a Guardrails folder or a cloud resource. Attaching a watch to any other type of resource (Guardrails control types, policy settings, etc) won't generate the expected notifications.

{
  "input": {
    "resource": "185423120545381",
    "action": "tmod:@turbot/firehose-aws-sns#/action/types/router",
    "filters": ["level:self,descendant notificationType:active_grants_deleted"]
  }
}

Upon successful watch creation, you will see a response like the below example:

{
  "data": {
    "createWatch": {
      "filters": [
        "resourceId:185423120545381 level:self,descendant notificationType:active_grants_deleted"
      ],
      "handler": {
        "action": "tmod:@turbot/firehose-aws-sns#/action/types/router"
      },
      "turbot": {
        "id": "215276026059506",
        "resourceId": "185423120545381"
      }
    }
  }
}

Getting list of Watches

To get the list, use the following example.

query MyWatches {
  watches(filter: "") {
    items {
      handler
      filters
      watchRules {
        metadata {
          filters
        }
      }
    }
  }
}

Guardrails will return any watches:

{
  "data": {
    "watches": {
      "items": [
        {
          "handler": {
            "action": "tmod:@turbot/firehose-aws-sns#/action/types/router"
          },
          "filters": [
            "resourceId:185423120545381 level:self,descendant notificationType:active_grants_deleted"
          ],
          "watchRules": {
            "metadata": {
              "filters": [
                "watchId:215276026059506"
              ]
            }
          }
        }
      ]
    }
  }
}

If there are no watches configured in the workspace, you'll see

{
  "data": {
    "watches": {
      "items": []
    }
  }
}

Deleting Watches

To delete a watch, use the following mutation example. Copy the long number from watchId in $.data.watches.items[].watchRules.metadata.filters[].watchId from the results of the MyWatches query.

mutation DeleteMyWatch {
  deleteWatch(input: { id: "215276026059506" }) {
    handler
    filters
  }
}

Upon successful deletion, you will see a similar response:

{
  "data": {
    "deleteWatch": {
      "handler": {
        "action": "tmod:@turbot/firehose-aws-sns#/action/types/router"
      },
      "filters": [
        "resourceId:185423120545381 level:self,descendant notificationType:active_grants_deleted"
      ]
    }
  }
}

Running MyWatches again should show that the watch has been deleted.

Notifications

A Notification represents an event that occurred in Guardrails. The notification will include detailed information about the affected resource, control, policy value, policy setting, etc. This data includes the object detail before and after the event, standard Guardrails metadata, and other details of the event.

Sample Notification

Below is a sample notification of type active_grants_deleted.

{
  "notificationType": "active_grants_deleted",
  "actor": {
    "identity": {
      "picture": "https://www.gravatar.com/avatar/cb9ff8606c24daf9cda1d82615bd7a8e",
      "turbot": {
        "title": "Timon Berkowitz",
        "id": "186957187212252"
      },
      "title": "Timon Berkowitz"
    }
  },
  "turbot": {
    "id": "202473982728085",
    "createTimestamp": "2020-09-10T17:34:58.063Z"
  },
  "oldActiveGrant": {
    "grant": {
      "type": {
        "trunk": {
          "title": "Turbot"
        }
      },
      "level": {
        "trunk": {
          "title": "User > Metadata > ReadOnly"
        }
      },
      "resource": {
        "trunk": {
          "title": "Turbot"
        }
      },
      "identity": {
        "trunk": {
          "title": "Turbot > Turbot Local > Pumbaa Smith"
        }
      }
    },
    "resource": {
      "trunk": {
        "title": "Turbot"
      }
    }
  }
}

Notification Template

The "Render Template" pipeline action will execute the query and nunjucks template in the Notification Template policy. The transformed notification will then be placed on the Firehose SNS topic. These render templates are implemented as Guardrails policies. You may choose to override these templates (policies) in the format that is suitable for your need. For example, in order to update the render template for active_grants_deleted notification type, use the Guardrails Policy Turbot > Firehose > AWS SNS > Notification Template > Active Grants Deleted. All supported templates can be found under the parent policy type Turbot > Firehose > AWS SNS > Notification Template > *.

Additional information can be added to the notification queries in the Notification templates. Use the GraphiQL Developers tab in the Guardrails console to test out altered notification queries.

The output of the notification template by default is JSON but can be in whatever format fits your needs best.

Notification templates cannot be made into calculated policies.

Troubleshooting

Sometimes a part of the Firehose data path breaks down. The questions below point to common points of missing or misconfiguration of the Firehose pipeline.

For reference, here's the data path again. Each one of these steps needs to operational for notifications to flow.

Notification generated (resource, control, policy, etc) -> Watch -> Render the Notification Template -> Publish to AWS SNS topic -> Downstream integrations

Firehose Mod and Policies

Firehose Watches

Firehose Notification Templates

Firehose Topic and User

Downstream Integrations
