Architecture Options
In this guide, you will:
- Explore architectural considerations for deploying Turbot Guardrails.
- Understand different options available based on organizational risk and availability requirements.
Turbot Guardrails is a comprehensive governance platform that automates discovery, compliance, security, and operational remediation tasks across cloud environments. Due to its critical role as a security and compliance control plane, it's essential to configure Guardrails with high availability and disaster recovery in mind.
This document outlines various architectural options to help you select an approach aligned with your organization's specific high availability (HA) and disaster recovery (DR) needs, based on your risk tolerance and operational requirements.
| Tier | Account | Region | Availability Zone | Availability | RTO | RPO | Use Cases |
|---|---|---|---|---|---|---|---|
| Tier1 | Single-account | Single-region | Single-AZ | 99% | 4 Hr | 4 Hr | Development and non-prod environments |
| Tier2 | Single-account | Single-region | Multi-AZ | 99.9% | 4 Hr | 4 Hr | Production without rapid DR requirements |
| Tier3 | Single-account | Multi-region | Multi-AZ | 99.9% | 2 Hr | 2 Hr | Production requiring rapid DR |
| Tier4 | Multi-account | Multi-region | Multi-AZ | 99.99% | 0 Hr | 0 Hr | Mandated zero downtime DR |
Tier 1: Development
Key Characteristics: Single-account, single-region, single availability zone.
This deployment option is appropriate for non-production and development workspaces, where high-availability and disaster recovery are not important for the accounts monitored by guardrails.
This is the lowest cost infrastructure deployment option available.
This deployment uses one primary RDS instance without a failover configuration. Recovery can be performed from RDS point-in-time backups.
Tier 2: High Availability
Key Characteristics: Single-account, single-region, multi-availability zone.

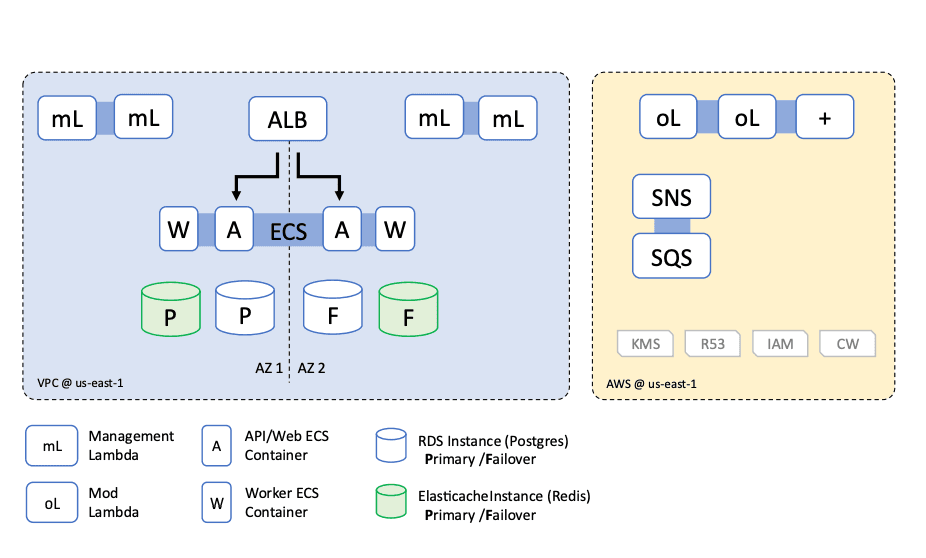

This deployment option is appropriate for all production usage. It is the most cost-effective deployment option for production use cases and has the capability to achieve 4hr RPO/RTO in all circumstances except the loss of an entire AWS Region.
The changes in this deployment vs the Tier 1 DR architecture are:
- The ECS compute cluster is deployed across multiple availability zones.
- Lambda are deployed across multiple availability zones.
- An RDS failover instance is deployed in a second availability zone.
- An Elasticache failover instance is deployed in a second availability zone.
Tier 3: Multi-Region
Key Characteristics: Single-account, multi-region, multi-availability zone.
This deployment option is appropriate when regulatory requirements demand that a multi-region solution be implemented, or when requirements drive less than a 4hr RTO/RPO. It has the benefit of being resilient to the loss of an entire AWS Region.

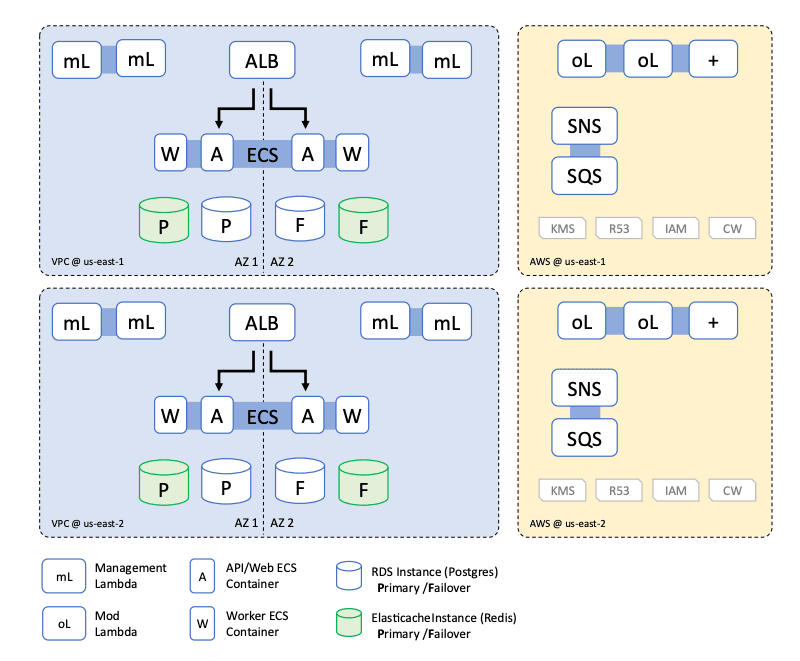

The key difference between this deployment is that a second Turbot Guardrails deployment is created in the standby region. The compute cluster will be set to be dormant, and no inbound events will be received by the cluster. On declaration of a disaster, DNS will be changed to send events to this region, while the database is recovered from a cross region RDS snapshot. Once the DB is recovered, the workspace is enabled, and events will start processing from the queue.
To use this pattern, cross-region RDS backups must be configured in this account to ensure the DB can be restored in the target region without access to KMS in the primary region. This option also requires the use of AWS API Gateway, and a public DNS endpoint and SSL certificate to allow redirection of inbound real-time events between regions.
Tier 4: Multi-Account
Key Characteristics: Multi-account, multi-region, multi-availability zone.

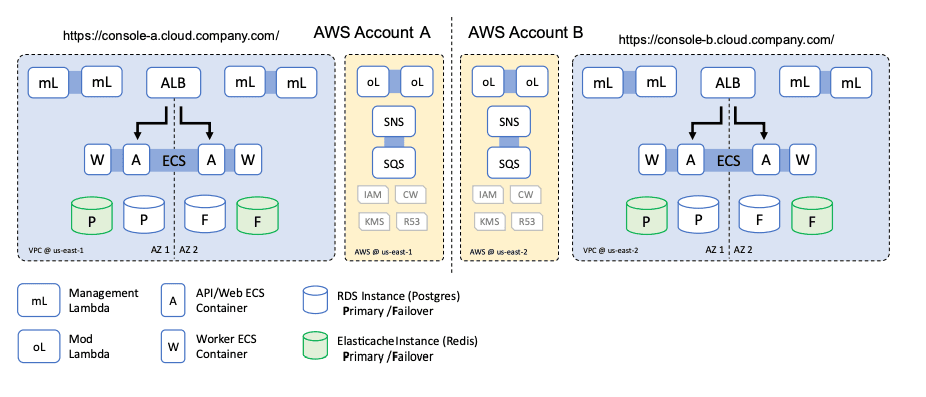

The Tier 4 deployment option should be considered for any organization with zero RTO/RPO requirements. This deployment option allows for instantaneous failover between two active Guardrails environments. We use the “Change Window” feature of guardrails to prevent one of the implementations from executing any enforcements. Upon declaration of an emergency, the standby environment change window can be removed allowing that environment to become the primary and enforce changes.
In normal day to day operation, both environments consume cloud events and maintain independent CMDB databases. This pattern results in both doubling the infrastructure and per control usage costs for Guardrails if employed.
Care must be made in this configuration to ensure that policy packs and account onboarding/offboarding is done across both environments in tandem, using the Guardrails Terraform provider to maintain consistency between the deployments. Custom scripting may be necessary to periodically check to ensure both environments are identical in configuration, to meet your organizations DR requirements.
