Configuring PingID and Guardrails

This guide details configuring a Guardrails application in PingID as well as the directory in Guardrails. Administrator access in PingID and Turbot/Owner permissions in Guardrails are required for configuration.

Configuring PingID for Guardrails is a three-phase process.

1. Initial configuration in PingID
2. Directory configuration and activation in Guardrails
3. Finalizing configuration in PingID

Phase 1: Create the SAML App in PingID

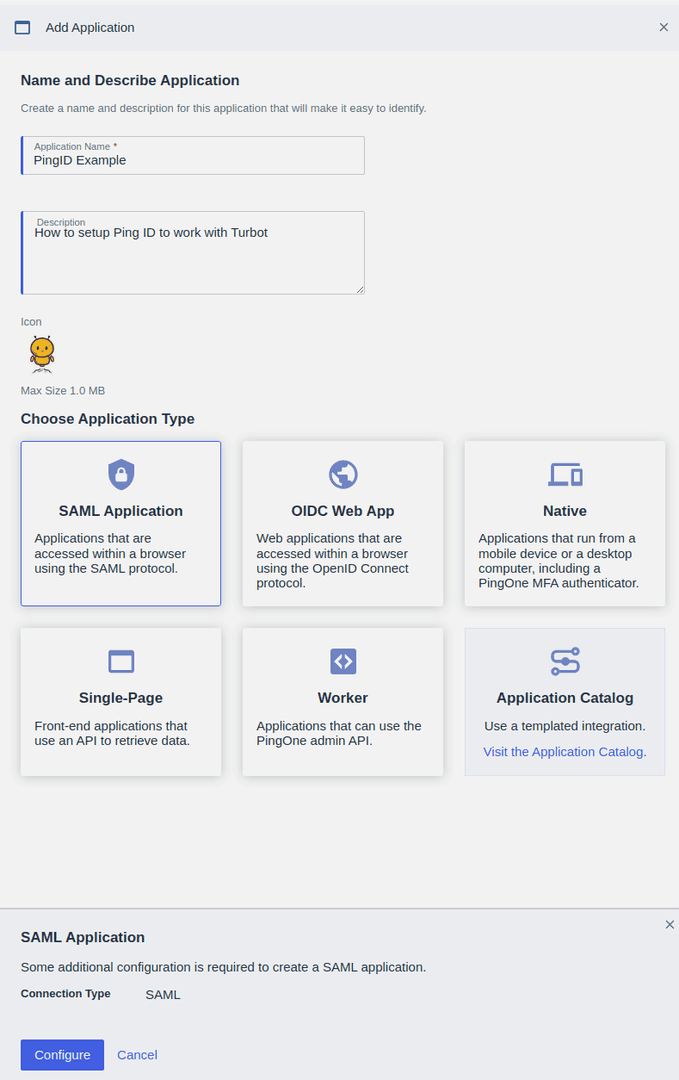

In the PingID Admin console create a new application for Guardrails.

Use the below Guardrails JPG as the icon for the Guardrails application.

Initial Identity Provider Settings

• Application Name: Turbot Guardrails (For customers with multiple environments: TurbotGuardrailsProd/TurbotGuardrailsDev)
• Application Description: SAML integration with Guardrails
• Application Type: SAML Application
• Protocol Version: SAML v 2.0

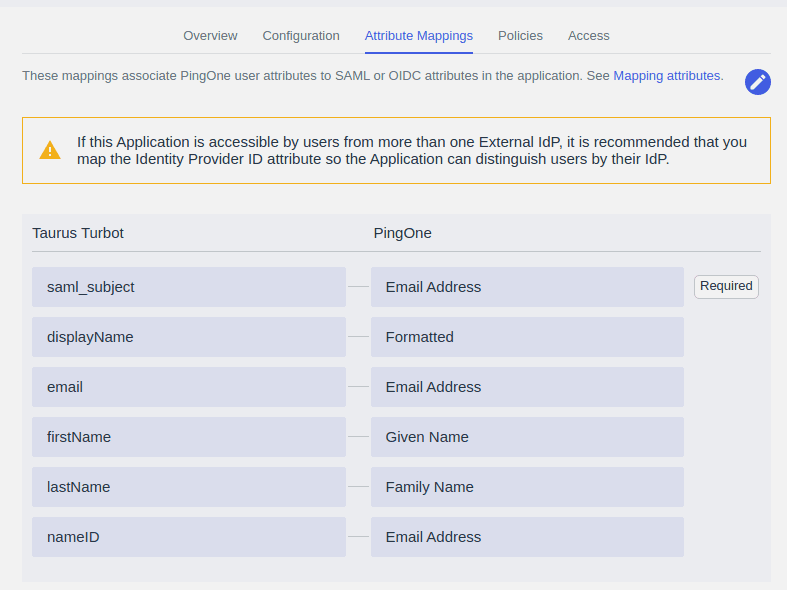

SAML Attributes

Required Attributes

Required attributes are case-sensitive.

PingID will fill in saml_subject for you.

Optional Attributes

Download the SAML Metadata File.

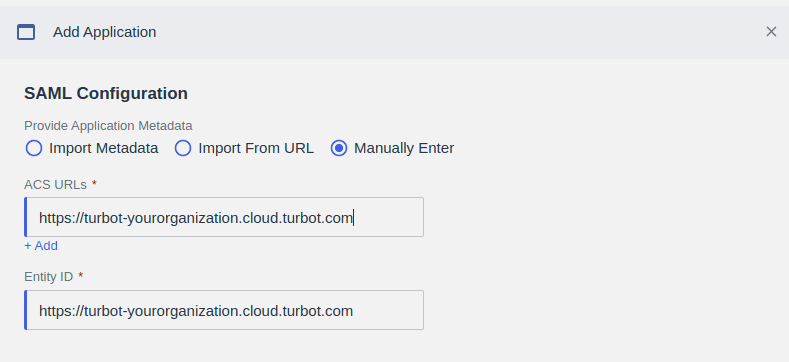

Edit SAML Configuration

Set the following parameters:

• Assertion Consumer Service (ACS): Use https://workspace.turbot.your-company.com/ as a placeholder. This will be updated after the SAML directory has been created and activated in Guardrails.
• Entity ID: A common convention is to use the workspace URL (https://{{workspace-id}}.turbot.company.com), but any unique value should work.
• Signing Algorithm: RSA_SHA256
• Force Re-authentication: As required. If True, users will always be forced to re-authenticate in when logging into Guardrails, regardless of any active existing SSO session

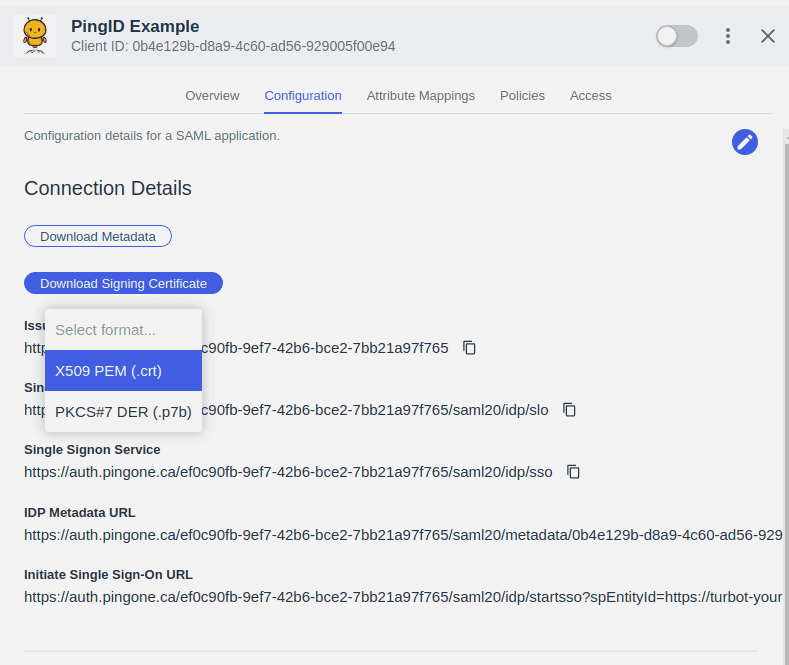

Get Certificate

Download the X509 PEM (.crt) certificate. The file will start with -----BEGIN CERTIFICATE----- on the first line. This will be required when configuring the directory in Guardrails.

Phase 2: Configure Directory in Guardrails

1. Log into Guardrails. Turbot/Owner permissions are required at the Guardrails resource level.
2. Click the Permissions tab (designated with a king icon) in the top navigation bar.

3. Select the blue Directories button at the top.

4. Select New Directory then click the SAML option. The Create SAML Directory window will pop up.

5. In the new directory dialog box, enter the following information:
   • Title: Title for the SAML directory. This will display at the login screen. A common title is "{Organization} SSO"
   • Description: A description for the directory.
   • Entry Point: The URL that Guardrails redirects the user to authenticate. This is the Single Signon Service URL shown in the PingID SAML configuration. It will have a format similar to https://auth.pingon.com/{hash}/saml20/idp/sso.
   • Issuer: The base Guardrails URL, i.e. https://cloud.turbot.company.com for enterprise installations. For SaaS, it will look something like https://turbot-orgid.cloud.turbot.com.
   • Certificate: Retrieve the Base64 certificate from the PingID SAML Configuration page, then paste the entire contents into this field.
   • Profile ID Template: pingid.{{profile.email}} is a common template as this prevents profile name collisions with Guardrails Local directories. A template to generate the ID of the Guardrails profile for users authenticated through this directory. The ID MUST be unique for each profile in Guardrails, but it is possible to have multiple directories map users to the same ID. This CANNOT be changed unless the directory is new. Changing the
6. Name ID Format can generally be left as unspecified.
7. The Signature section can be used to sign requests with a private key and signature algorithm. Usually used only as an organizational requirement. This is an uncommon requirement.
8. Advanced Configuration Options:
   • Advanced > Allow IdP-Initiated SSO: Administrators have the option to allow IdP-initiated Single Sign-On (SSO) logins. Allowing IdP-initiated SSO carries inherent security risks. The lack of an InResponseTo attribute means that Service Provider (SP)-solicited SAML assertions cannot be validated. Before enabling this feature, thoroughly assess the potential security implications of not verifying the InResponseTo field. Decisions regarding this setting are typically guided by an organization's security team, and should be confirmed to align with security protocols prior to implementing the directory.
     • Troubleshooting: If users encounter an error stating InResponseTo is missing from response during SAML login, it indicates that the IdP-initiated SSO option needs to be enabled. Select the "Enabled" option to resolve this problem.
   • Advanced > Require Signed Authentication Response: Enable this option if you require the SAML authentication response from your Identity Provider (IdP) to be signed, ensuring data integrity and authenticity.
   • Advanced > Strict Audience Validation: Administrators have the option to enable strict audience validation. This should not be enabled if the Issuer field above does not match the workspace URL.
     • Troubleshooting: If users encounter an error stating SAML assertion audience mismatch during SAML login, it indicates that the Strict Audience Validation should be disabled. Select the "Disabled" option to resolve this problem.
9. Click the Create button.
10. On the Directories list page, click the pencil icon next to the new PingID directory.
11. Scroll all the way to the bottom for a field called "Callback URL". It will be in the form of https://{turbot_console_url}/api/latest/directories/{directoryID}/saml/callback. The {directoryId} will be a 15-digit number. This will be needed when updating the Guardrails application in PingID.

The SAML Directory has been created but is not yet active.

Phase 3: Update the ACS URL in PingID

Replace the default Assertion Consumer Service (ACS) URL in the PingID SAML Configuration settings with the callback URL defined in the new directory. This can be found by clicking on the pencil icon next to the new directory in Guardrails. The Reply URL will look like https://{turbot_console_url}/api/latest/directories/{directoryID}/saml/callback.

Note: If for some reason the PingID SAML directory is deleted from Guardrails, the ACS URL will need to be changed. Each directory in Guardrails gets a unique ID. Altering the profile template is the most common reason for deleting an old directory then creating a new one.

Test the Configuration

1. Activate the directory by clicking on the upward point arrow icon next to the new directory.
2. Open a private browser session. Navigate to the Guardrails URL and select the new directory listed in the drop-down menu. If the directory is not showing, check to see that the directory was successfully activated.
3. Resolve any error messages that may pop up from PingID or Guardrails. Problems with ACS URLs and Callback URLs usually pop up here.
4. Test logins from the PingID application list.
5. Test logins directly from the Guardrails console login screen.
6. After successful login, go to the user profile link in the top right corner. Click the Developers tab next to Overview. In the Terraform sidebar, all the profile data for this user will be displayed. If those fields are empty or contain incorrect/improper values then adjust the SAML Claims until fixed. Log out then log in again after each SAML claims adjustment. Getting the letter-casing wrong on SAML attributes is a common cause of empty attributes.
7. If there are any residual user profiles with incorrect information, delete them before finishing.
8. Congratulations! PingID SAML is now configured and can be used to authenticate users into Guardrails. Grant user permissions as appropriate.

Be aware that deleting a user profile out of Guardrails while the user is logged in can do weird things with browser sessions. Log out then delete the profile if at all possible.

As with other directory types within Guardrails, an initial login will need to happen in order for the profile to be created, and then permissions can be assigned to the profile. Refer to our Permissions documentation on how to grant permissions to new users.
