Connect to Turbot Pipes from DataGrip

DataGrip is a cross-platform SQL IDE to query, edit and manage your databases.

Steampipe provides a single interface to all your cloud, code, logs and more. Because it's built on Postgres, Steampipe provides an endpoint that any Postgres-compatible client -- including DataGrip -- can connect to.

You can get the information needed to connect to your Turbot Pipes database instance from the Query tab for your workspace. On the Query tab, click the info button at the top of the query window to show the connection information.

Once the connection to Turbot Pipes is established and tested, you can explore the tables provided by the Steampipe plugins, run queries and build reports.

You can also connect DataGrip to Steampipe CLI. To do that, run steampipe service start --show-password and use the displayed connection details.

Steampipe service is running:

Database:

  Host(s):            localhost, 127.0.0.1, 192.168.29.204
  Port:               9193
  Database:           steampipe
  User:               steampipe
  Password:           99**_****_**8c
  Connection string:  postgres://steampipe:99**_****_**8c@localhost:9193/steampipe

Getting started

DataGrip is available to use on the desktop; there's a 30-day trial. In this example we will create a Turbot Pipes connection from DataGrip and query the AWS availability zones.

To create a new connection click on New and add a PostgreSQL data source. Click Download missing driver files at the bottom of the settings page, since DataGrip does not include bundled drivers required to interact with the database. Enter the Turbot Pipes connection details and click Test Connection to Verify.

Once you've connected to Turbot Pipes, you can access the AWS plugin and its tables from the Database explorer.

Here we select the aws_availability_zone table. DataGrip displays the table's schema and previews the data. You can drag the columns to organize the data and choose to export the data to a variety of formats.

Run your first custom query

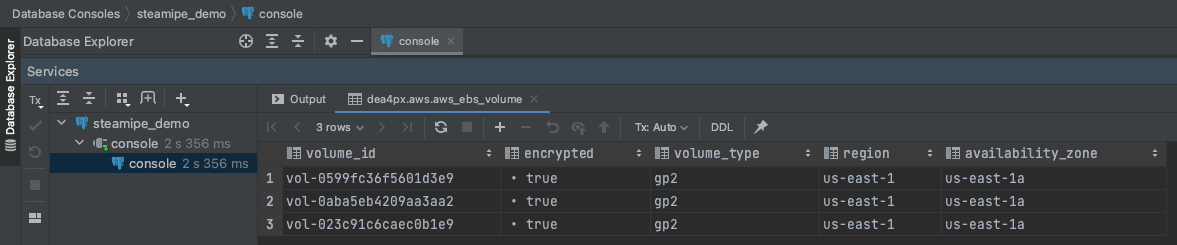

DataGrip provides an editor that you may use to write custom queries. Here is a query to fetch the list of encrypted EBS volumes.

select
  volume_id,
  encrypted,
  volume_type,
  region,
  availability_zone
from
  aws_ebs_volume
where
  encrypted;
