AWS S3 Access Logging Policy Configuration

This guide will detail how to enforce S3 access logging, configure the bucket to send the logs, and adding a prefix to the log. In this example, we will enforce access logging on every bucket within an AWS account, configure the access logging such that the logs are shipped to another bucket within the same account, and add a prefix so the log files are put into a folder called Access-Logs.

The Guardrails mod aws-s3 being installed is a prerequisite of this guide.

NOTE: This is specifically for account owned S3 buckets. Guardrails will deploy logging buckets to AWS accounts upon import if the policy AWS > Turbot > Logging > Bucket is set to Enforce: Configured.

The same methodology in this guide can be applied to Guardrails logging buckets to enable access logging. However, to enable access logging on Guardrails logging buckets, the policy AWS > Turbot > Logging > Bucket > Access Logging will need to be set to Enabled, NOT the policy AWS > S3 > Bucket > Access Logging!

This will need to be used in conjunction with the policy AWS > Turbot > Logging > Bucket > Access Logging > Bucket and AWS > Turbot > Logging > Bucket > Access Logging > Bucket > Key Prefix to define the bucket to ship logs to and the S3 prefix to use, respectively.

Configure Log Destination

Log into Guardrails as an Administrator. Select the Policies tab, then click on the green New Policy Setting button.

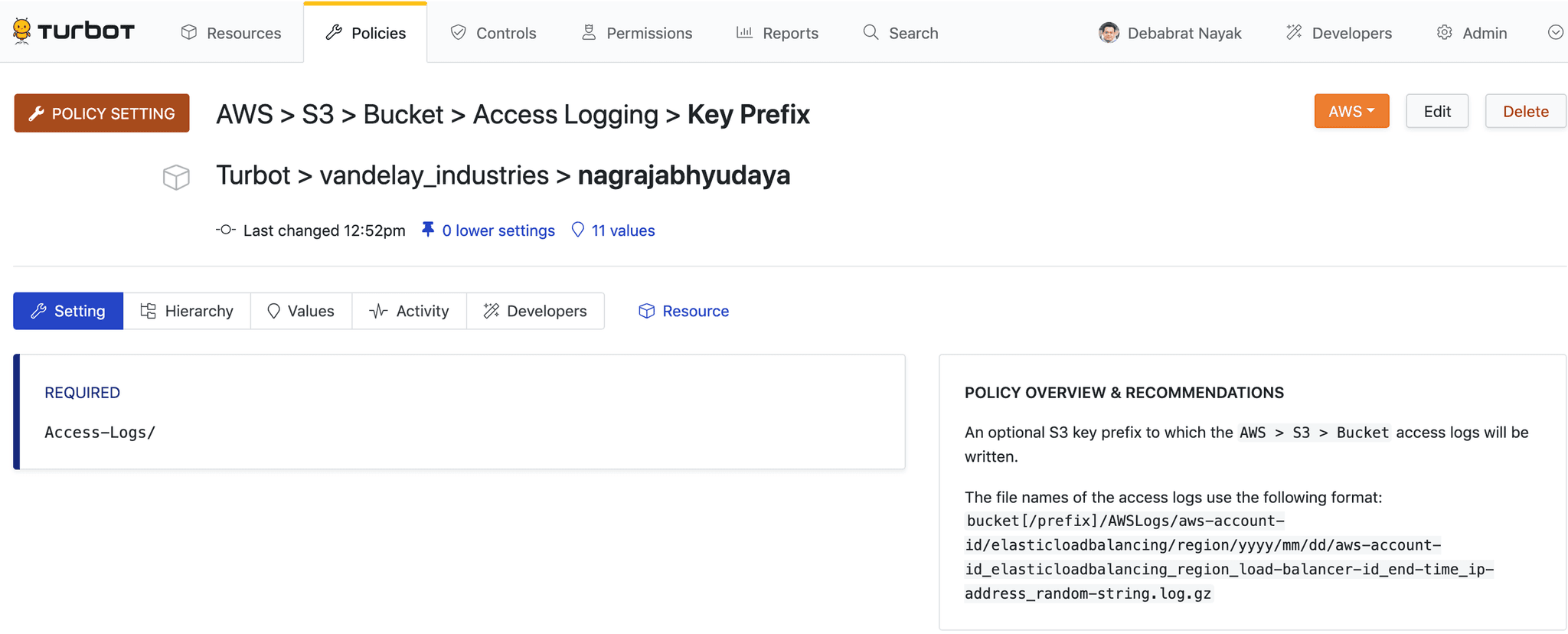

This opens new page with the title Create Policy Setting. Click on the Policy Type field, search for the string aws S3 access logging key prefix. Select the result with the title AWS > S3 > Bucket > Access Logging > Key Prefix.

Select the Resource as the AWS account where the policy setting will live. The setting will affect all resources at the specified level and below in the policy hierarchy.

In the Setting text box, the desired prefix for access logs can be defined. For this example, we want to ship access logs to a folder titled Access-Logs. This can be set by simply adding the text: Access-Logs/into the field. Notice the trailing slash. Without this slash, AWS will simply append any text in this field to the beginning of the log file name.

For example, if the access logs were titled aws-access-logs-123 (for simplicities sake) and the text Access-Logs was set as the prefix, the log files would then become Access-Logsaws-access-logs-123. Using multiple slashes (/), it is possible to create nested folders, such as Access-Logs/foo/bar/.

Once the policy setting is set, click the Create button.

Configure Bucket to Receive Access Logs

Select the Policies tab, then click on the green New Policy Setting button.

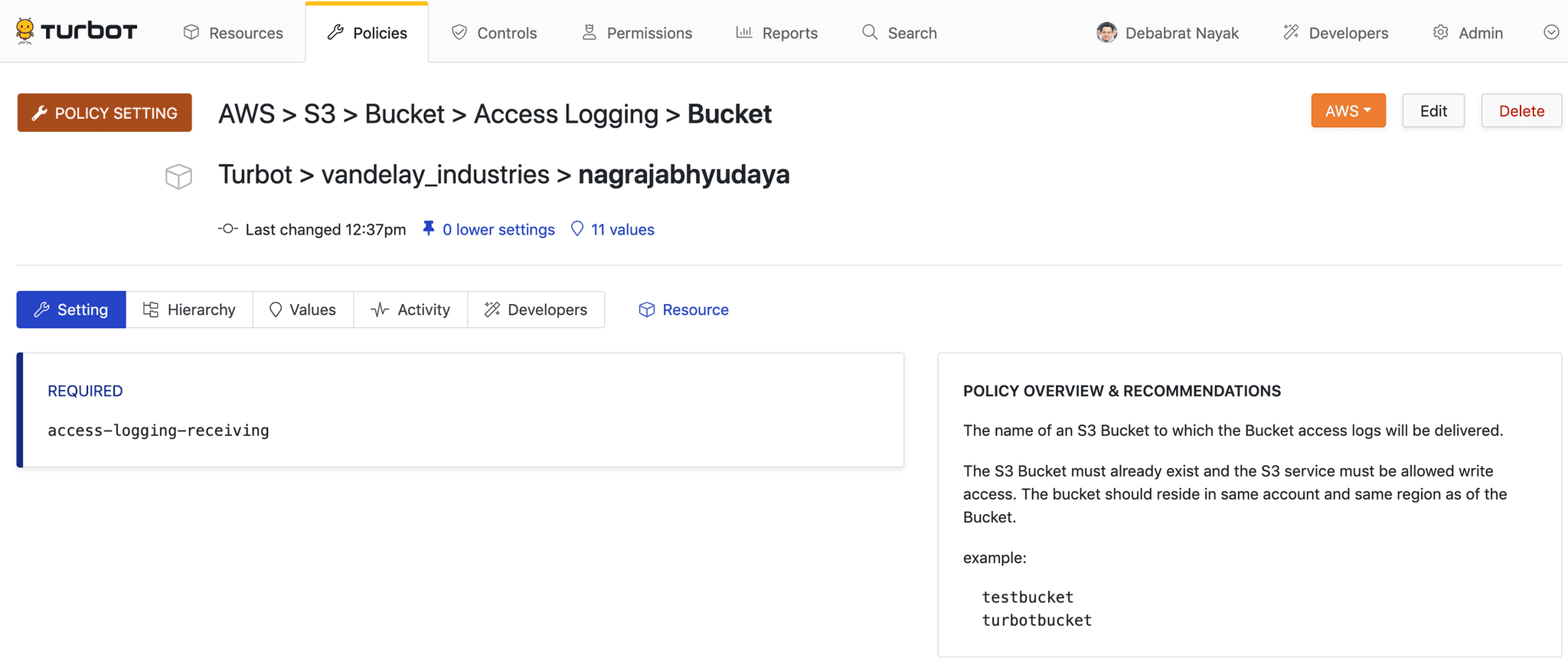

This opens new page with the title Create Policy Setting. Click on the Policy Type field, search for the string aws S3 access logging. Select the result with the title AWS > S3 > Bucket > Access Logging > Bucket.

Select the Resource as the AWS account where the policy setting will live.

In the Setting text field, simply input the bucket name for which the logs should be sent to. If we assume the bucket that should receive the logs is titled access-logging-receiving, simply enter that name into the text field and click Create.

Enforce S3 Access Logging

Select the Policies tab, then click on the green New Policy Setting button.

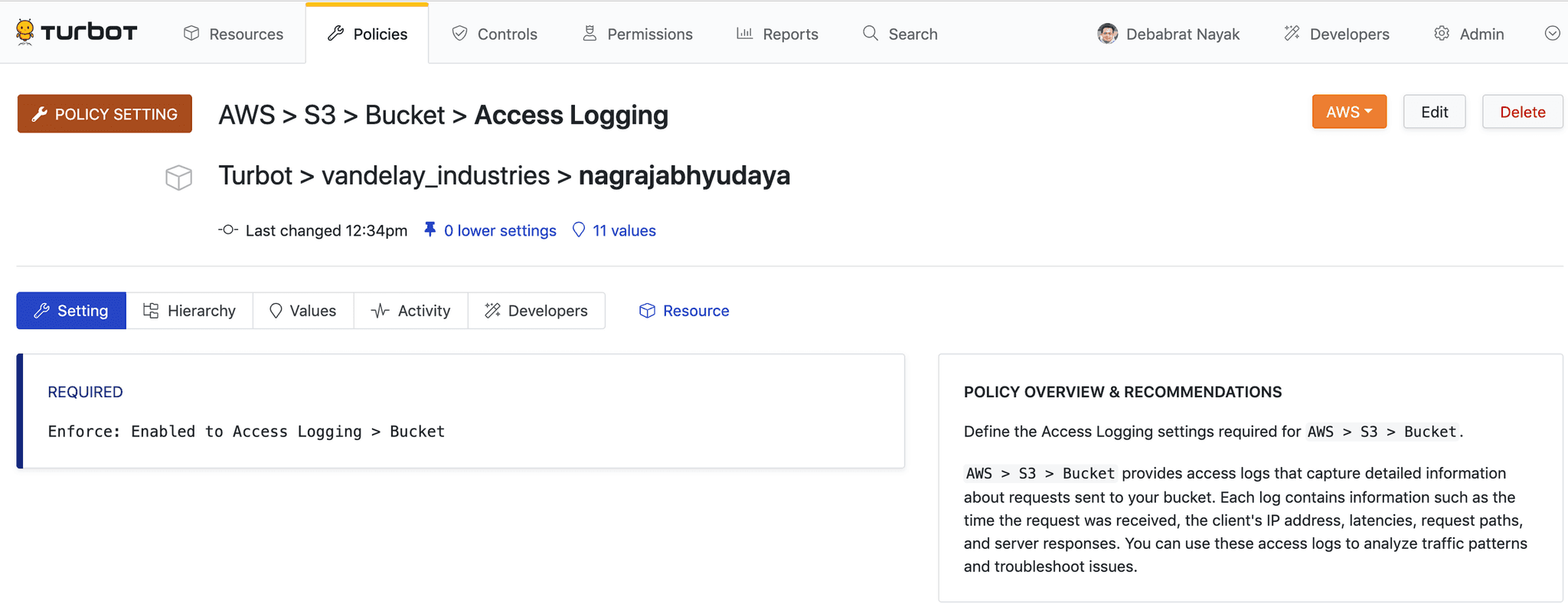

This opens new page with the title Create Policy Setting. Click on the Policy Type field, search for the string aws S3 access logging. Select the result with the title AWS > S3 > Bucket > Access Logging.

Select the Resource as the AWS account where the policy setting will live.

Guardrails provides a few different options for this policy. Skip is exactly that - this will not be enforced on S3 buckets. The three different Check options tells the access logging control to check an S3 bucket for disabled or enabled access logging (along with checking the bucket which logs are being shipped to if the Enabled to Access Logging > Bucket is selected), but it will NOT make changes. Finally, the Enforce settings will trigger the control and Guardrails will make changes to the bucket if necessary.

Select the Enforce: Enabled to Access Logging > Bucket option, then click Create.

Verify the Configuration

It is important to verify that a policy setting is taking effect in the expected manner. This can be verified by navigating to any S3 bucket that should now have access logging configured and checking the metadata. Alternatively, access logs can be generated by a user (for example, by viewing an object in a bucket) and subsequently monitor the expected access logging bucket to ensure that the files are being correctly stored.
